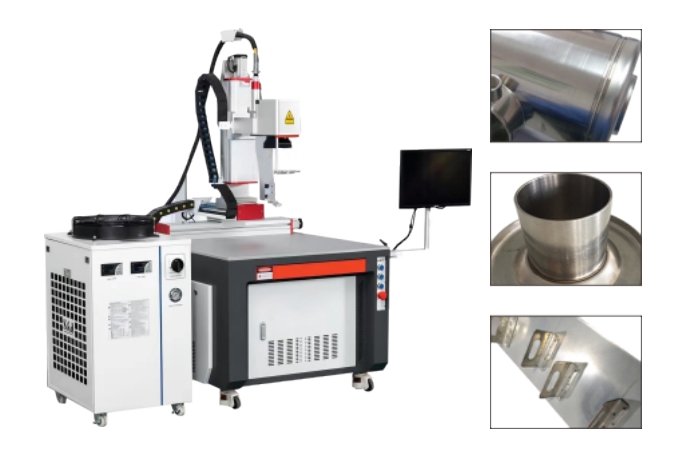

3/4/5 Axis Platform Laser Welding Machine
Product Category
| Product Features |
|---|
| 1.Sy s tem composi tion: Laser(optional 1500W, 2000W, 3000W, 6000W, etc)the three axes of the working table (X Y Z)drive the movement of the welding joint, which can realize the welding of any plane trajectory such as point,circle and straight line. It can be equipped with CCD monitoring system to observe the welding process, and equipped with laser welding special software; |
| 2.Motion platform: The standard stroke of X Y Z is 500m m 200 mm 300mm. Optional: 300 m m 300 m m 500 mm; |
| 3.Range of application: Auto parts, medical equipment, pipe processing, hardware bathroom, refri geration accessories and other industries. |
| Items | Technical Parameters |
|---|---|
| Model | PLWM-1500/2000/3000/6000 |
| Maximum Laser Power | 1500W/2000W/3000W/6000W |
| Laser Working Medium | Rare Earth Doped Fiber |
| Wavelength | 1070±10nm |
| Optical Fiber Output Quantity | 1Way |
| Welding Depth | 0.2-1.8mm/0.2-2.5mm/0.3-2-6mm |
| Laser Power | 5kw/6kw/9kw/18kw |
| Power Input | 220V/220V/380V/380V |
| Cooling Mode | Water-Cooling |
| Optical Fiber Type | QBH |
| Fiber Length | 10/15m |
| Fiber Diameter | 50µm/100µm/100µm 50µm/100µm/50µm/75µm |
