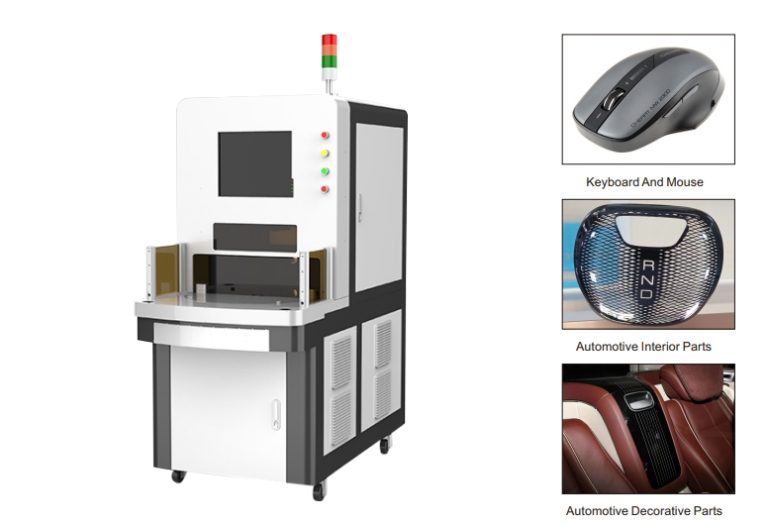

3D Laser Marking Machine

Product Category

Product Features
  1. The 3D laser marking machine can solve the problem of laser marking products with curved surfaces, slopes, high and low drop surfaces, irregular surfaces, arcs, balls, cones, and other irregular surfaces;
  2. Adopting 3D software system algorithm and 3D galvanometer to achieve automatic focusing, with an accuracy of $\pm 0.02\text{mm}$;
  3. Able to achieve multi-level large-scale marking, marking on 3D products, and also on flat surfaces, with a wider range of applications;
  4. Adopting imported configuration, the entire machine has stable performance, no consumables, no pollution, low energy consumption, and longer service life.
Items Technical Parameters
Model 3DLM-30/50/100
Laser Type Fiber UV/CO2 Optional
Laser Power 20W/30W/50W/100W
Laser Wavelength 1064nm
Minimum Characters $\leq 0.4\text{mm}$
Minimum Line Width $\leq 0.1\text{mm}$
Marking Line Speed 8000-20000mm/s
Cooling Method Air Cooling/Water-Cooling
Operating Weight 80-150KG
Overall Power 800-2000W
Marking Range $110\text{mm}*110\text{mm}$ Optional
Overall Size $650\text{mm}*935\text{mm}*1450\text{mm}$
Power Supply AC220V/50Hz
