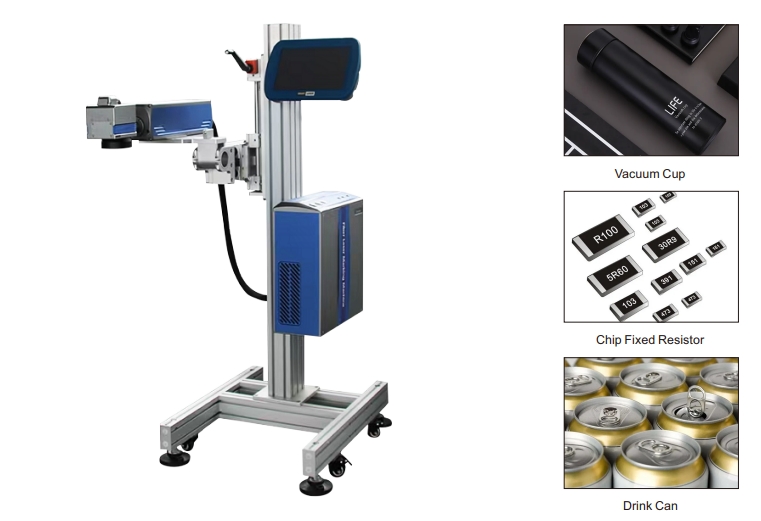

Assembly Line Fiber Laser Marking Machine

Product Category

Product Features
High accuracy in marking and coding; Laser lifespan can reach 100000 hours; Strong anti-counterfeiting, laser marking is not easy to copy and change; Special support for assembly line, adjustable from multiple angles in front, back, up and down, suitable for complex working conditions of assembly lines; Equipped with a dedicated encoder for real-time detection of pipeline speed, or equipped with fiber optic sensors for realtime detection of items; Low usage cost, maintenance free, and consumables free.

Product Features

High accuracy in marking and coding;
Laser lifespan can reach 100000 hours;
Strong anti-counterfeiting, laser marking is not easy to copy and change;
Special support for assembly line, adjustable from multiple angles in front, back, up and down, suitable for complex working conditions of assembly lines;
Equipped with a dedicated encoder for real-time detection of pipeline speed, or equipped with fiber optic sensors for realtime detection of items;
Low usage cost, maintenance free, and consumables free.

Items	Technical Parameters
Model	FLM-20/30/50-FM
Laser Output Power	20W/30W/50W
Laser	Fiber Laser Generator
Marking Range	110*110mm Customizable
Laser Wavelength	1064nm
Marking Speed	8000-20000mm/s
Repetitive Accuracy	$\pm 0.003\text{mm}$
Positioning Method	Red Light Preview, Red Light Positioning
Cooling Mode	Air-Cooling/Water-Cooling
Power Supply	AC220V/50Hz
Application	Electronic products, hardware and metals, motorcycle parts, wires and cables, pipes, food and beverages, daily chemical products, pharmaceuticals, some non-metallic PVC, PE, PC, CPP, PA, etc
