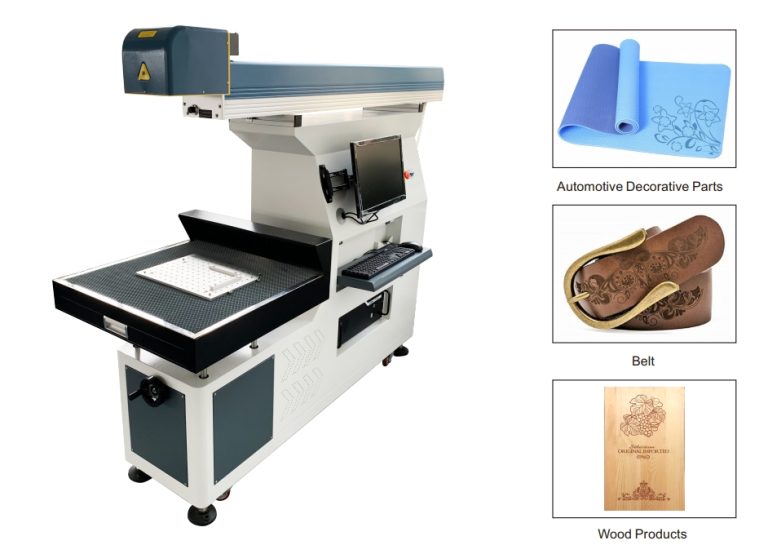

Dynamic Large Format Laser Marking Machine
Product Category
| Product Features |
|---|
|
| Items | Technical Parameters | ||
|---|---|---|---|
| Model | LFLMM-20-30-50-100-F fiber As An Example | ||
| Laser Type | Fiber | UV | CO2 |
| Output Power | 30W-100W | 5W-20W | 50W-200W |
| Frequency Adjustment Range | 0-60KHZ | 30-130KHZ | 0-5KHZ |
| Marking Range Of Flat/Curved Surfaces | 500*500mm/1200*1200mm Customizable | ||
| Surface Marking Range Height | $\pm 50\text{mm}$ | ||
| Surface Acceptance | $<100^{\circ}$ | ||
| Carving Line Speed | 7000-20000mm/s | ||
| Minimum Character | 0.5mm | ||
| Minimum Line Width | 0.03mm | ||
| Repetitive Accuracy | $\pm 0.01\text{mm}$ | ||
| Engraving Depth | Depending On The Material | ||
| Power Supply | AC220V/50Hz/10A | ||
| Cooling Mode | Water-Cooling | ||
