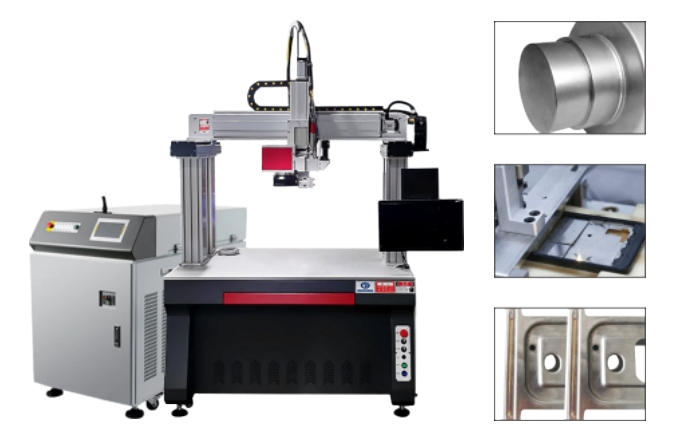

Fiber Optic Transmission YAG Laser Welding Machine
Product Category
- Aviation Tools
- Aviation Fasteners
- PBM-A/B SERIES SPRING FASTENERS
- DS CYLENDERICAL BODY SPRING FASTENERS
- DP CYLENDERICAL BODY FASTENERS
- AB SERIES HEX BODY FASTENER
- BDN SERIES WING NUT FASTENERS
- DNS SERIES HEX BODY SPRING FASTENERS
- TR/BBS SERIES SPRING FASTENERS
- CB-CCN/CB-DDS
- TEMPORARY FASTENER INSTALLATION TOOL
- OTHER SERIES FASTENERS
- Aviation Drills
- Aviation Fasteners
- Hand Tools
- LASER MACHINE
- Cutting Tools
| Product Features |
|---|
| 1.Fiber optic transmission requires only regular replacement of the I light pump and purified water, with minimal dai ly maintenance and long-term stable use; |
| 2.It has the function of negative energy feedback and low fluctuation of output energy: Fish scale pattern welding, beautiful welding spots; |
| 3.Peak power up to 10KW, single point energy up to 100J, strong penetration; |
| 4.In addition to copper, aluminum, and nickel welding in the field of lithium batteries, it can also be used for other high reaction materials such as gold and silver; |
| 5.The thickness of 5 can be as thin as 0.1, 0.2, and 0.3mm, such as the welding of nickel sheets and strips; |
| 6.It can be used for graphic welding processing consisting of laser points, straight lines, circles, squares, and other planes |
| Items | Technical Parameters |
|---|---|
| Model | YLWM-150/300/600 |
| Laser Type | YAG |
| Wavelength | 1064nm |
| Laser Output Power | 150W/300W/600W |
| Laser Pulse Energy | 40J/70J/90J |
| Pulse Width | 0.1-20ms |
| Pulse Frequency | 1-100HZ |
| Optical Fiber Output Quantity | Maximum 4way |
| Optical Fiber Core Diameter | 0.4mm |
| Feedback Control Mode | Energy Feedback/Current Feedback |
| Energy Stability | <2% |
| Locate Mode | Red Light Indicator CCD Optional |
| Cooling Mode | Water-Cooling |
| Power Demand | AC380V/50Hz/30A |
