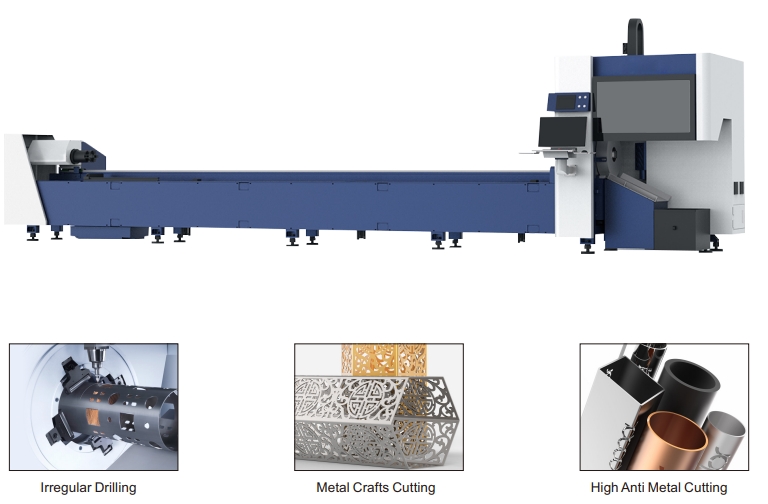

Laser Pipe Cutting Machine

Product Category

Product Features
1. Fast speed: up to 160r/min;
2. Short tailings: can be as short as 40-160mm;
3. High cutting accuracy: Repetitive positioning accuracy +0.03mm;
4. There are many types of cutting pipes: graphic pipes, square pipes, elliptical pipes, and various types of irregular pipes;
5. Strong stability of the bed: The tube and plate are welded together, and each bare bed is annealed to prevent deformation;
6. Simple operation: The control system is easy to operate and learn, with more comprehensive compatibility and more flexible and efficient processing

Items	Technical Parameters
Model	LCM-PP6000/8000/12000-3000	Custom
Cuttable Tube Length	6m/8m/12m
Diameter Range Of Processing Circular Pipes	10-220mm	20-460mm
Processing Square Tube Edge Length Range	1010-155155mm	2020-320320mm
Output Power	2000W/3000W/4000W/6000W
Repetitive Positioning Accuracy	±0.03mm
Chuck Speed	160r/min
Maximum Acceleration	1.2G
Cutting Width	0.1-0.2mm
Automatic Feeding System	Optional
Power Supply	AC380V/50Hz
Applicable Materials	Carbon steel, stainless steel, aluminum, brass, copper, galvanized steel, alloys, etc
Applicable Pipe Type	Round tube, square tube, rectangular tube, elliptical tube, irregular tube, channel steel, I-shaped steel, T-shaped steel, etc
