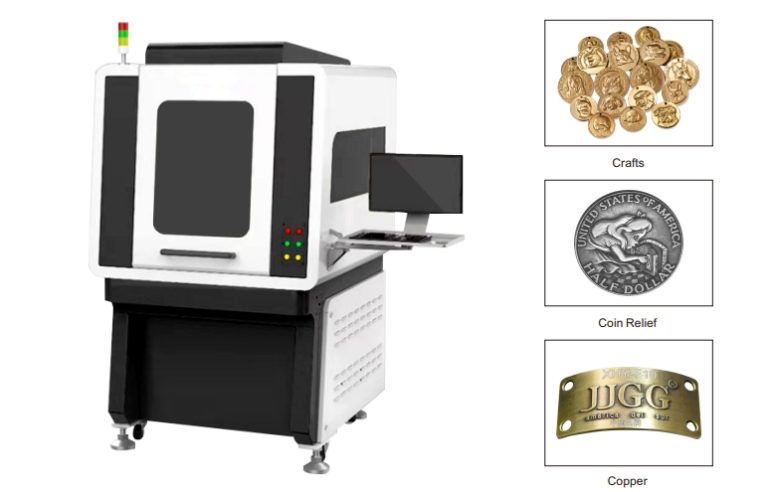

MOPA Laser Deep Carving Machine

Product Category

Product Features
  1. Adopting 3D dynamic focusing, automatic zoom, and front focusing core technologies;
  2. The depth of deep carving can reach 3mm;
  3. Delicate lines 0.02mm;
  4. It can achieve yang carving, yin carving, convex carving, and concave carving;
  5. Suitable for curved surfaces, slopes, high low drop surfaces, irregular surfaces, curved surfaces, spheres, and cones;
  6. Material: gold, silver, copper, mold steel, stone, coins, copper coins.
Items Technical Parameters
Model LDCM-50/100
Output Power 50W/100W Customizable
Wavelength 1064nm
Frequency 1-1000KHZ
Marking Range 110*110mm/175*175mm Customizable
Marking Depth 0.3-3mm
Marking Speed 8000-20000mm/s
Minimum Line Width 0.02mm
Minimum Character 0.15mm/0.2mm
Repetitive Accuracy 0.002mm
Cooling Mode Air Cooling/Water-Cooling
Power Supply AC220V/50Hz
