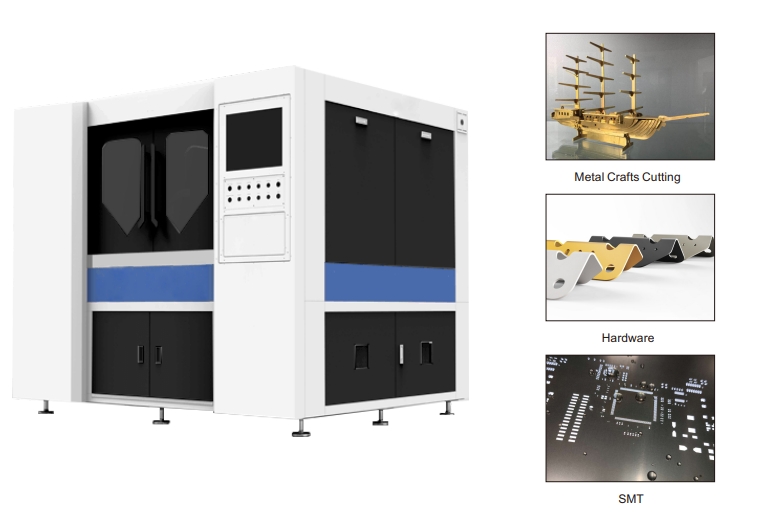

Precision Laser Cutting Machine

Product Category

Product Features
1.It can be as fast as 40m/min;
2.Repetitive positioning accuracy $\pm 0.02\text{mm}$;
3.Can reach up to 1.0G;
4.The cutting surface is smooth and does not require further polishing;
5.Good overall rigidity and high strength, ensuring the stability of the structure;
6.The crossbeam is made of extruded aluminum profiles, which have good acceleration performance. It has been precision processed by a CNC gantry milling machine to ensure accurate movement.

Items	Technical Parameters
Model	PLCM-PL5040/6060/8080/12050-1000
Processing Format	500400mm/600600mm/800800mm/12501250mm
Output Power	1000W/1500W/2000W/3000W
Repetitive Positioning Accuracy	± 0.02mm/m
Maximum Acceleration	1.0G
Minimum Line Width	0.1-0.2mm
Working Environment Temperature	-10°C-45°C
Continuous Working Time Of Relative Humidity	24H
Power Supply	AC380V/AC220V/50Hz
Cooling Method	Water-Cooling
Applicable Materials	Stainless steel, carbon steel, magnesium aluminum, alloy,copper alloy, aluminum substrate, ceramics, etc
Application	3C electronics, semiconductors, industrial ceramics, hardware processing, glasses and watches, SMT steel mesh, medical devices, etc
