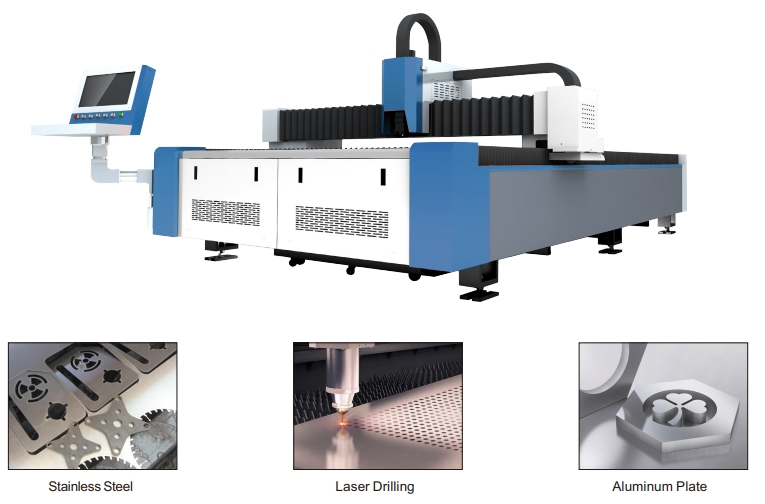

Single Table Laser Cutting Machine
Product Category
| Product Features |
|---|
| 1. Fast speed: up to 140m/min; |
| 2. Acceleration: Up to 1.5G; |
| 3. High cutting accuracy: Repetitive positioning accuracy $\pm 0.03$mm; |
| 4. Good cutting quality: The cutting surface is smooth and does not require further polishing; |
| 5. Gantry cast aluminum crossbeam: high rigidity, light weight, and higher dynamic response; |
| 6. Strong stability of the bed: The tube and plate are welded together, and each bare bed is annealed to prevent deformation. |
| Items | Technical Parameters |
|---|---|
| Model | SLCM-PL3015/4020/6025/8025-3000 |
| Processing Format | 3000*1500mm/4000*2000mm 6000*2000mm/8000*2500mm |
| Output Power | 3000W/4000W/6000W/8000W/12000W |
| Maximum Operating Speed | 140m/min |
| Maximum Acceleration | 1.5G |
| X/Y Positioning Accuracy | ±0.05mm/m |
| X/Y Repeated Positioning Accuracy | ±0.03mm/m |
| Maximum Load-bearing Capacity | 800-7000kg |
| Machine Tool Operating Temperature | 0°-40°C |
| Power Supply | AC380V/50Hz |
